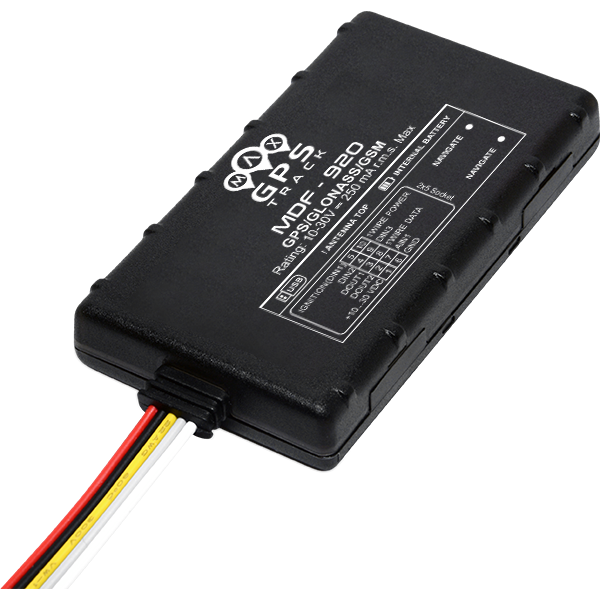

MDF-920

Small and smart tracker with micro SD card, Bluetooth v3.0 and internal backup battery

Product Details

Product Overview

Bluetooth

Integrated Bluetooth enables wireless headset and various other Bluetooth sensors connectivity. Make phone calls to Your employee via Bluetooth headset. No unauthorized calls anymore! Be sure that your employee is always safe and uses hands free headset instead of phone!

MicroSD card

Don't lose any records with microSD card up to 32 GB! MDF-920 will store all data in microSD card when driving in areas where GSM is not available.

Antitheft system

Prevent your vehicle from theft with advanced antitheft functionality. Combine Auto Geofencing with new Towing detection functionality.

Crash detection

Ensure safety of Your employee with smart Crash detection. Get alarm message immediately after accident, save workers life!

Ultra small case

Easy to install, hard to find! Prevent Your device from unauthorized disconnection using undetachable device cable and backup battery for detecting power disconnections. Dimensions only 79x43x12 mm.

Certified IP54 case

MDF-920 features new case design which ensures increased protection against dust ingress and water splash from any direction. It is certified according IP54 protection class. MDF-920 with IP54 case can be installed in machines with increased posibility of dust and water ingress.

Product Features

TECHNOLOGY

GNSS : Global positiong system/Global Navigation Satellite System.
GPRS : General Packet Radio Service (GPRS) is a packet oriented mobile data service based on the 2G technology.
SMS : Short Message Service (SMS) is a text messaging service component.
Bluetooth : Bluetooth is a wireless technology standard for exchanging data over short distances.

HARDWARE

IP54 : Limited protection against dust ingress. (no harmful deposit), Protected against splash water from any direction.
Internal GSM antenna : An antenna used for GSM connectivity. Integrated into MDF device PCB. Does not have external connector.
Internal GNSS antenna : An antenna used for GPS connectivity. Integrated into MDF device PCB. Does not have external connector.
DIN - digital input - 1 : Digital Inputs allow device to detect logic states 1 (enabled) or 0 (disabled).
AIN - analog input - 1 : An analog input converts a voltage level into a digital value that can be stored and processed in device.
DOUT - 1 : Digital Outputs allow device to output logic states 1 (makes a circuit) and 0 (cuts the circuit).
Accelerometer : Accelerometer allows the device to indicate if vehicle is moving or not, as well as measure acceleration.
Battery - 170mAh Li-ion 3,7V : Allows device to work without external power source
Micro SD : Micro SD card slot for records storing when there is no GPRS connectivity.
10 - 30V : External voltage range
Overvoltage protection : Protects device from voltage jumps till 90V
1x SIM Card : Allows to put 1 SIM card for internet connection
USB 2.0 Interface : Device accessible and configurable via USB

FIRMWARE

NITZ time synch.: Network Identity and Time Zone (NITZ) is a mechanism for provisioning local time and date, time zone and DST offset, as well as network provider identity information, to mobile devices via a wireless network.
Configuration over Bluetooth : Configuration over Bluetooth gives ability to configure the device remotely by using Bluetooth connection.
Bluetooth sensors support : Bluetooth sensors are responsible to transmit the collected data remotely to device.
Ignition detection : A vehicle ignition detection function, based on a configured ignition source (External power voltage, Digital input 1 or Movement).
Geo-fence : A functionality, which generates an event when crossing a defined area. It can be used to detect wherever car enters or leaves customized areas
Sleep/Deep sleep : Working modes which let MDF deviceto reduce power consumption and save vehicle battery.
- In sleep mode, MDF device turns GNSS module off and it is not saving or sending new periodic data records.
- In deep sleep mode, MDF devicesets GNSS receiver to sleep mode and turns off GSM/GPRS module, although periodic records with last known coordinate are being saved and sent to server.
Overspeeding detection: This scenario helps to prevent from exceeding fixed speed and inspects driver if needed. Digital output 1 is controlled by scenario for user needs, to manage buzzer, LED etc. During overspeeding event Digital output 1 will be turning ON and OFF until speed is lower than configured Max Allowed Speed.
FOTA : Firmware over the air solution. The software is used to send firmware/configuration to MDF devicevia GPRS network.
Remote Log : This type of MDF data logging is used when there is no possibility to connect to device physically. Device establishes GPRS connection and activates link to server, log is started to stream to server until set time is elapsed.
GPRS commands : It is possible to send commands to MDF deviceusing GPRS. GPRS commands can be used for sending configuration, debug, digital outputs control commands etc. These commands should be coded into a special codec12 format.
Eco driving : This scenario helps to prevent and inspect driver about harsh driving. Eco driving scenario continuously monitors: accelerating, braking and cornering forces depending on build in accelerometer. Monitoring sensitivity is configurable.
MDF deviceDigital Output 1 is controlled by scenario for user needs, buzzer or LED for example.
Green driving : Helps to prevent and inspect driver about harsh driving. This functionality works in parallel with accelerating force, braking force and cornering angles. Every harsh drive event can be presented in the real time during the LED or buzzer notification.
Fuel monitoring LLS : Fuel monitoring via LLS sensors gives ability to measurer are highly accurate fuel level in the vehicle. This functionality can be based on digital or analog connectivity.
Jamming detection: Jamming detection informs the driver with buzzer or LED about radio jamming events.
NTP time synch.: Network time protocol (NTP) is used to get the right time without GPS connection. This functionality gives an ability to monitor the device state in the real time.
SMS event : SMS event is a special functionality which is used to notify the user about the tracker initial state. Any changes of speed, engine status, over speeding or etc. will be informed with SMS.
Idling detection: The Idling detection functionality allows User to monitor the engine working time without initial speed.
Crash detection : Crash detection functionality is generating the record when device detects car accident using the internal sensors (Accelerometer).
Odometer : Odometer is used to calculate traveled distance and produce this information directly to server.
Trip detection : Trip detection is used to inform user about start and stop points in the dedicated location, while engine is on or off.
Towing detection : Towing detection feature helps to inform the User about car deporting. The quick event will be sent to server while towing is detected.
Integrated scenarios : The integrated device scenarios are used to simply enable the dedicate functionality like Green driving, Over speeding, Authorized driving or Immobilizer.
Remote configuration over SMS : The remote configuration via SMS gives an ability to configure the device via SMS
Offline tracking : Offline tracking is used to track the object position while GPRS is not activated.
Auto Geofencing : Auto geofencing can detect wherever car enters or leaves customized areas with deactivated ignition.
Voice call : The voice call functionality gives an ability to make a directly phone call with device.

Technical Details

GSM/GPRS features:

Quad-band 900/1800 MHz; 850/1900 MHz
GPRS Multi-Slot Class 12(up to 240 kbps)
GPRS Mobile Station Class B
SMS (text/data)

Bluetooth:

Bluetooth specification V3.0
Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals:
- Voice calls over Bluetooth
- Configuration via Bluetooth
- Bluetooth sensors

GNSS:

Tracking: 33/ 99 acquisition channels
-165 dBM sensitivity
Hot start <1s
Warm Start < 25s
Cold start < 35s
NMEA-183 protocol
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Accuracy < 3m

Interface:

1 Digital Input
1 Analog Input
1 Digital Open-collector Output (connecting external relays, LED, buzzers etc.)
Built in accelerometer
Power supply (+10...+30) V DC with overvoltage protection
Internal High Gain GNSS antenna
Internal High Gain GSM antenna

Features:

Dimensions 79x43x12 mm.
Weight 54 g.
Up to 32 GB microSD memory card for up to 275 million records
Fully controllable digital output via SMS and configurator
Ultra small and easy to mount in limited access areas case
Fast first GPS fix
Real Time tracking
Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
Smart algorithm of GPRS connections for GPRS traffic saving
Operating in roaming networks by preferred GSM providers list
Events from I/O elements detection and sending via GPRS or SMS
Auto Geofencing and T owing Detection for car theft prevention
Deep Sleep mode (less than 2 mA power consumption)
Firmware and configuration update via GPRS
Smart data acquisition mode
High Quality track even in high density populated urban areas or canyon
Color Ribbon undetachable cable
Easy to mount
High Gain internal GPS / GLONASS and GSM antennas
2 status LED
Crash detection
Towing detection using accelerometer
Smart data acquisition based on:
- Time
- Distance
- Angle
Ignition or any other I/O events
Configurable using Secured SMS commands and configurator on PC
